How to Calculate Electrical Load: A Step-by-Step Method

Posted on by

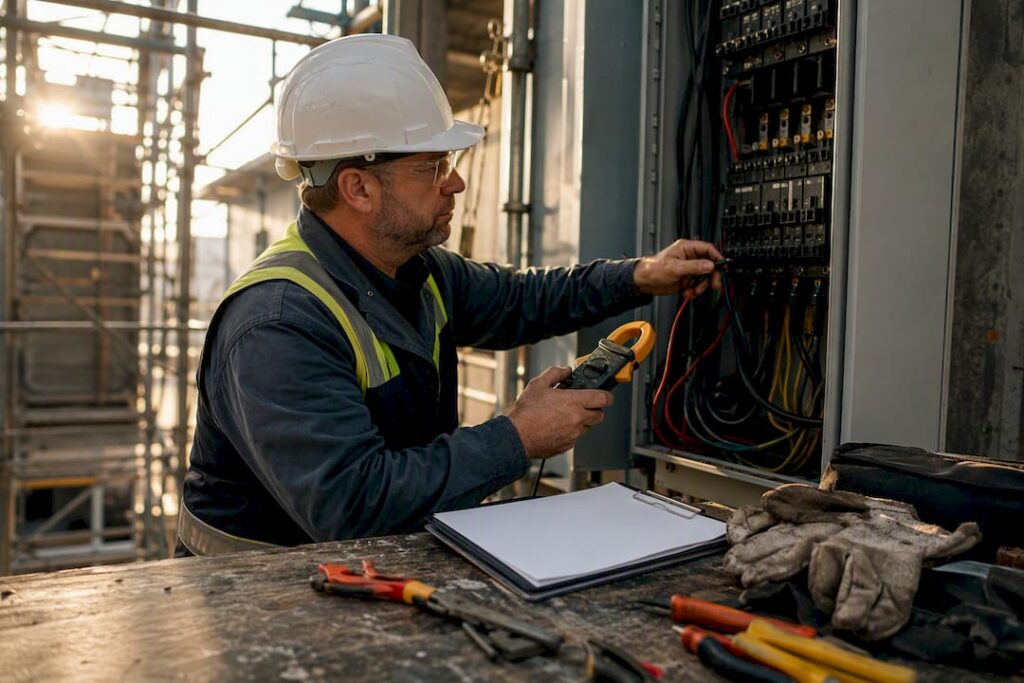

Electrician measuring electrical load onsite
21
Aug

A usable electrical load estimation produces two numbers: a demand figure in volt-amps and a corresponding ampere value, calculated using National Electrical Code demand factors rather than a raw sum of every nameplate rating in the building. That distinction determines whether a property owner upgrades a 100-amp service unnecessarily or a contractor undersizes a panel for an EV charger.

Before running any calculation, gather these figures:

  • Total building or dwelling floor area (square feet)
  • Small-appliance and laundry circuit counts
  • Kitchen range or cooktop nameplate rating
  • Dryer nameplate rating
  • Fixed appliance nameplate data (dishwasher, disposal, water heater)
  • HVAC nameplate ratings for both heating and cooling
  • EV charger amperage and voltage
  • Any other fixed or motor loads planned for the property

Pro Tip: Convert your final demand load from volt-amps to amps by dividing by the service voltage, and remember that any continuous load, meaning anything expected to run three hours or longer, must be multiplied by 125% before you size the breaker, per NEC guidance covered in Simulations4All’s residential calculator.

Key Takeaways

Accurate electrical load estimation requires converting connected load into NEC-compliant demand load before sizing a service, not simply adding up every nameplate rating in the building.

Point Details
Demand load, not connected load Apply NEC demand factors before comparing your total against panel capacity.
Use the right method The Standard Method walks category by category; the Optional Method (220.82) often yields a lower figure for qualifying dwellings.
Heating or cooling, never both NEC 220.60 requires using only the larger of the two loads.
Continuous loads need 125% EV chargers and similar continuous loads must be adjusted before breaker sizing.
Escalate complex projects Stellar Structures prepares NEC-compliant worksheets and manages full authority submissions for service upgrades and electrification projects.

Table of Contents

Electrical Load Calculation Techniques: The Step-by-Step Method

Every credible load calculation starts the same way: inventory first, math second. Skipping the inventory step is the single most common reason contractors and property owners end up with numbers that don’t survive plan review.

  1. List every load category and record its nameplate VA or kW rating: general lighting, small-appliance circuits, laundry circuit, range, dryer, fixed appliances, HVAC, water heater, EV charger, and any motors or special equipment.
  2. Calculate the general lighting allowance at 3 VA per square foot of habitable floor area, then add 1,500 VA for each small-appliance circuit and 1,500 VA for the laundry circuit.
  3. Add fixed appliances at their nameplate values, applying the demand factor from NEC Table 220.53 when four or more fixed appliances are present.
  4. Apply category-specific demand factors. Lighting demand follows Table 220.42, small-appliance and laundry loads follow 220.52, ranges follow 220.55 (which uses Table 220.55 rather than a flat percentage), and dryers follow 220.54.
  5. Include only the larger of heating or cooling, never both. NEC 220.60 is explicit on this point, and adding both is one of the most frequent errors reviewers catch, as ecalpro’s Article 220 calculator notes.
  6. Consider the Optional Method under NEC 220.82 for qualifying dwellings: total the non-HVAC general loads, apply 100% to the first 10 kVA and 40% to everything above that threshold. Then add the larger of heating or cooling at full nameplate value. VoltCalcs breaks this formula down clearly, and it often produces a materially lower demand figure than the category-by-category Standard Method.
  7. Convert the final VA total to amps by dividing by the service voltage (typically 240V for single-phase residential service), then compare against your panel’s rated capacity.
  8. Adjust continuous loads by 125% before finalizing breaker and conductor sizing. EV chargers almost always fall into this category.

For large fixed equipment like heat pumps, central air conditioners, and EV chargers, pull the actual nameplate rating off the equipment or its spec sheet rather than relying on a rule-of-thumb VA-per-ton estimate. Rule-of-thumb figures are fine for early planning conversations, but they routinely diverge from actual equipment ratings by enough to shift a service-sizing decision.

A Worked Example: Sizing Service for a Sample House

Consider a single-family home of substantial size with typical circuits and appliances including an EV charger drawing 40 amps at 240V, totaling general lighting, appliance loads, HVAC, and continuous loads calculated per NEC demand factors. The overall calculated demand, after applying the appropriate factors and adjustments for continuous loads like the EV charger, results in an ampere demand that may approach but not necessarily exceed common service sizes, indicating limited headroom on smaller panels particularly when planning for future additions. A calculator like Wiresizes will map this same VA figure directly to standard service sizes and flag the 150-amp option as tight.

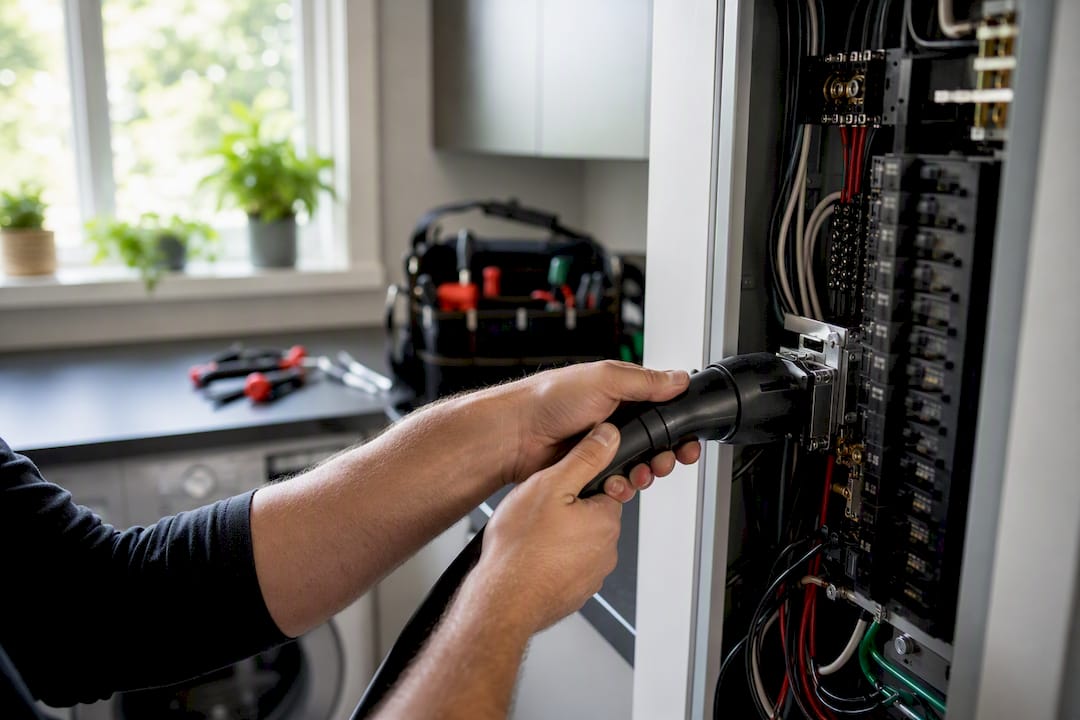

Hands wiring EV charger to residential panel

Should You Use an Online Electrical Load Calculator?

Online calculators earn their place in the process, but only if you understand what they’re actually computing. Most ask for the same inputs: floor area, appliance nameplate ratings, circuit counts, HVAC data, and any added loads like EV chargers or workshops. In return, they output a demand VA figure, an ampere value, and often a suggested service size.

The catch is method transparency. Some tools run only the Optional Method under 220.82, which is faster but assumes a qualifying dwelling and folds HVAC into a simple add-on rather than walking through every NEC category. Others genuinely replicate the Standard Method’s step-by-step demand factors, similar to what Calcipedia’s calculator demonstrates when it distinguishes connected load from calculated demand. A tool that doesn’t tell you which method it applies is a tool you shouldn’t trust for a permit submission.

  • Use online calculators for: quick panel headroom checks, early planning conversations, and comparing “what if I add an EV charger” scenarios.
  • Don’t use them as a substitute for: the exact calculation method your local authority having jurisdiction (AHJ) requires for a stamped submission.
  • Always confirm: whether the tool applies Standard, Optional, or a blended method before you cite its output anywhere official.

When Should You Hire a Licensed M&E Engineer?

Some situations call for more than a spreadsheet. Planning a service upgrade from 100A to 200A, adding an EV charger to a panel that’s already near capacity, converting a home to all-electric HVAC and water heating, or working on any commercial or multifamily project all justify bringing in a licensed engineer. If your AHJ requires a stamped load calculation, that requirement isn’t optional regardless of project size.

The timeline is usually manageable. Data gathering typically takes one to three days, the calculation and report another two to seven business days, and permit package coordination with resubmissions can run one to three weeks depending on how quickly the AHJ responds. Costs vary by market and scope. A simple load worksheet review sits at the lower end of the range, while a full M&E authority submission with drawings and coordination runs considerably higher. Treat any figure you hear as indicative until you get a scoped quote.

Before you hand a project to an engineer, prepare:

  1. A consolidated load inventory covering every category above.
  2. Nameplate photos for all major fixed equipment.
  3. A site plan showing panel location and service entrance.
  4. Existing service size and utility company information.
  5. Any future-scope loads you’re planning, even if not yet installed.

Readers coordinating rough-in work alongside load planning may also find Cables & Chips NYC’s guide to low-voltage rough-in useful for sequencing that work correctly. Choosing the right consultant matters just as much as the calculation itself, and Stellar Structures’ guide to selecting an M&E consultant walks through what to look for.

What a Professional Load Estimation Process Looks Like

A licensed firm doesn’t just plug numbers into a formula. The process typically runs through client intake, inventory verification against actual nameplate data, an NEC-compliant calculation using both Standard and Optional methods where applicable, equipment coordination and breaker sizing, and finally a permit worksheet paired with a stamped report.

What you receive at the end matters as much as the process itself:

  • A completed NEC Article 220 worksheet documenting every category and demand factor applied.
  • A written demand calculation narrative explaining the methodology chosen.
  • A service sizing recommendation with headroom analysis for planned future loads.
  • Continuous-load adjustments applied correctly to breaker and conductor sizing.
  • A summary cover letter formatted for AHJ submission.

Engineers catch nuances that generic calculators miss: the heating-versus-cooling rule under 220.60, correct continuous-load treatment for EV chargers, and motor sizing rules that differ from standard appliance treatment. Getting these wrong doesn’t just risk an inaccurate estimate, it triggers rework at plan review, which costs more time than the calculation itself. Firms like Stellar Structures handle the full scope, including authority submission and coordination, so the calculation and the permit package move together rather than as separate handoffs.

An Engineer’s Note From the Field

Connected-load sums almost always overstate real need. Add up every nameplate rating in a typical home and you’ll frequently land 30 to 40 percent above what properly applied demand factors actually require, which means unnecessary service upgrades get recommended more often than they’re needed.

EV chargers deserve extra caution.

How Stellar Structures Supports Your Electrical Load Estimation

If your project has crossed into service upgrade territory, added electrification, or requires a stamped submission, Stellar Structures handles the calculation and the paperwork so you don’t have to coordinate them separately. Our M&E engineering team runs NEC-compliant load calculations, prepares permit-ready worksheets, coordinates directly with the AHJ, and manages the full authority submission process from first draft to approval.

Com

That end-to-end coordination matters most on projects where electrical, structural, and architectural scopes overlap, such as additions, all-electric conversions, or commercial fit-outs requiring civil and structural design checks alongside the electrical package. If you’re planning a residential upgrade, our residential design services fold M&E planning into the broader design process rather than treating it as an afterthought.

Ready to move forward? Send us your load inventory and nameplate photos, or book an intake call, and we’ll scope the calculation and submission timeline for your specific project.

Frequently Asked Questions

How do you calculate electrical load for a house?
Inventory every load category, apply NEC demand factors from Article 220 for lighting, appliances, and HVAC, then convert the resulting VA total to amps by dividing by your service voltage.

How do you measure electrical load in an existing building?
For existing buildings, combine a nameplate inventory of installed equipment with the same NEC demand factor method used for new construction, since diversified demand rather than raw connected load determines actual service requirements.

What is 1 kW in electrical terms?
One kilowatt equals 1,000 watts of real power, the portion of electricity actually converted into useful work, as opposed to apparent power (measured in volt-amps), which includes the effect of power factor on inductive loads like motors.

What are the main types of electrical loads in a building?
Buildings typically carry general lighting loads, small-appliance and laundry circuits, fixed appliance loads (water heaters, dishwashers), HVAC loads, motor loads, and increasingly, EV charging loads, each governed by its own NEC demand factor category.
